Broachcutter® TCT Cutters are made with Special-purpose carbide tips for reduced damage of tips & better endurance. These are suitable for cutting holes on various materials with high speed. Multi-cut geometry results in increased chip removal and less resistance.

? Special sizes and Inch Diameter Cutters are Available on Order

? Cutters are also Available in Universal & other Shanks

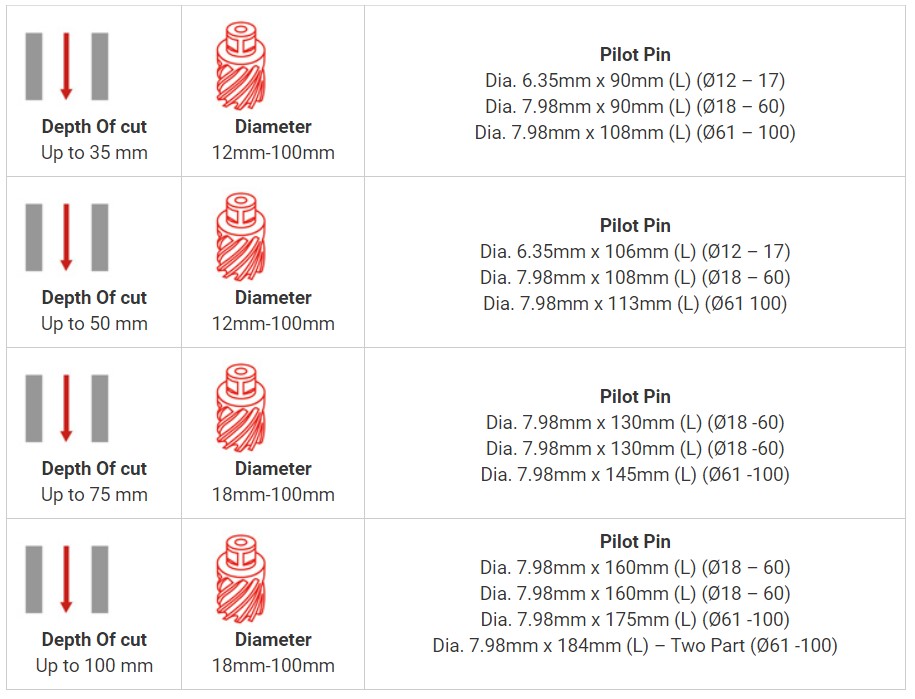

? Weldon shank 19.05mm(3/4”) for Diameter from 12mm to 60mm 31.75mm Weldon shank for Diameter from 61mm to 100mm

? Precisely Machined and Hardened Pilot pins for exactly locating Punch mark

? Universal Adapter
19.05mm shank with 3 ball grooves / Pilot Pin Dia. 6.35mm to allow using Broachcutter® Annular Cutters on Magnetic Base Drilling Machines having One-Touch Arbors.
Part No. 160001
Universal Adapter same as 160001 however with Pilot Pin Dia. 7.98mm
Part No. 160003

? Quick-In Adapter

19.05mm shank with 4 ball grooves / Pilot Pin Dia. 6.35mm to allow using Broachcutter® Annular Cutters on Magnetic Base Drilling Machines having One-Touch Arbors.
Part No. 160002

Quick-In Adapter same as 160002 however withPilot Pin Dia. 7.98mm
Part No. 160004
